WTS151: Step Transition from WR340 Waveguide to WR284 Waveguide

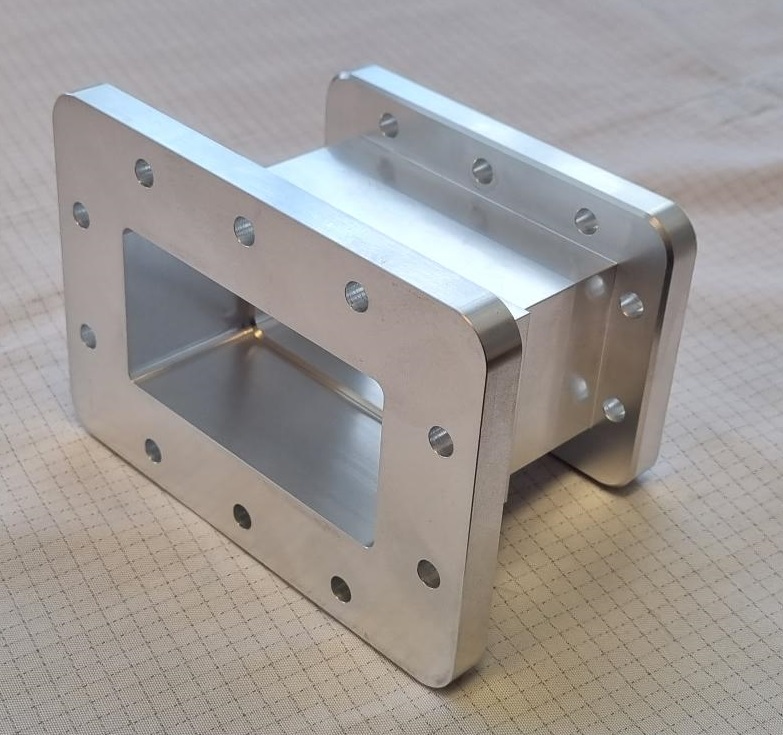

WTS151 is a step transition between WR340 (R26) and WR284 (R32) waveguides with an extension on the WR340 port that enables the use of general M6 bolts with nuts for attaching the transition to HOMER Analyzers, Autotuners, or other components.
| Specifications | |
|---|---|
| Frequency range | 2200 – 2700 MHz |
| Port 1 | WR284 (R26) |
| Port 2 | WR284 (R32) |
| Transition type | Step |
| Return loss (2425 – 2475 MHz) | > 30 dB |
| Peak working power | 30 kW |
