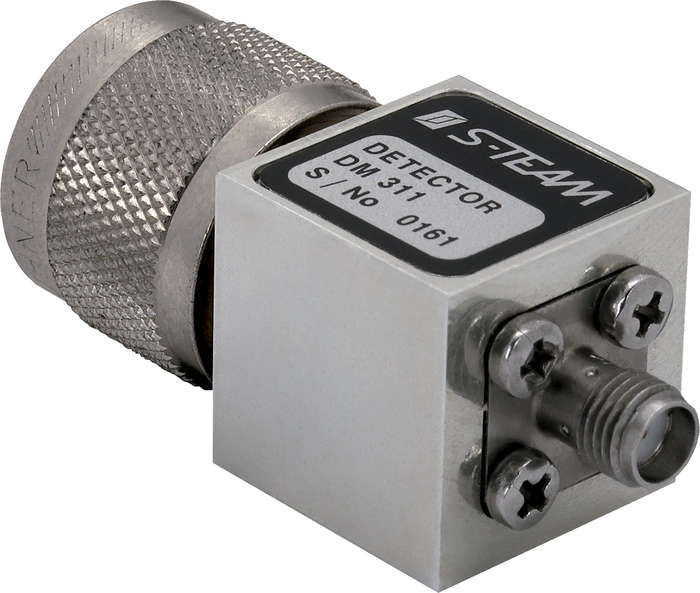

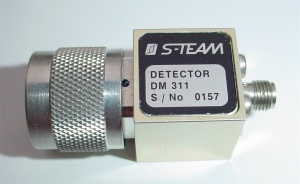

DM311: Microwave Detector

DM311 is a general-purpose zero-bias Schottky diode microwave coaxial detector with N-connector intended for 5.8 GHz industrial applications.

The detector delivers well-scaled DC voltage as a function of incident microwave power.

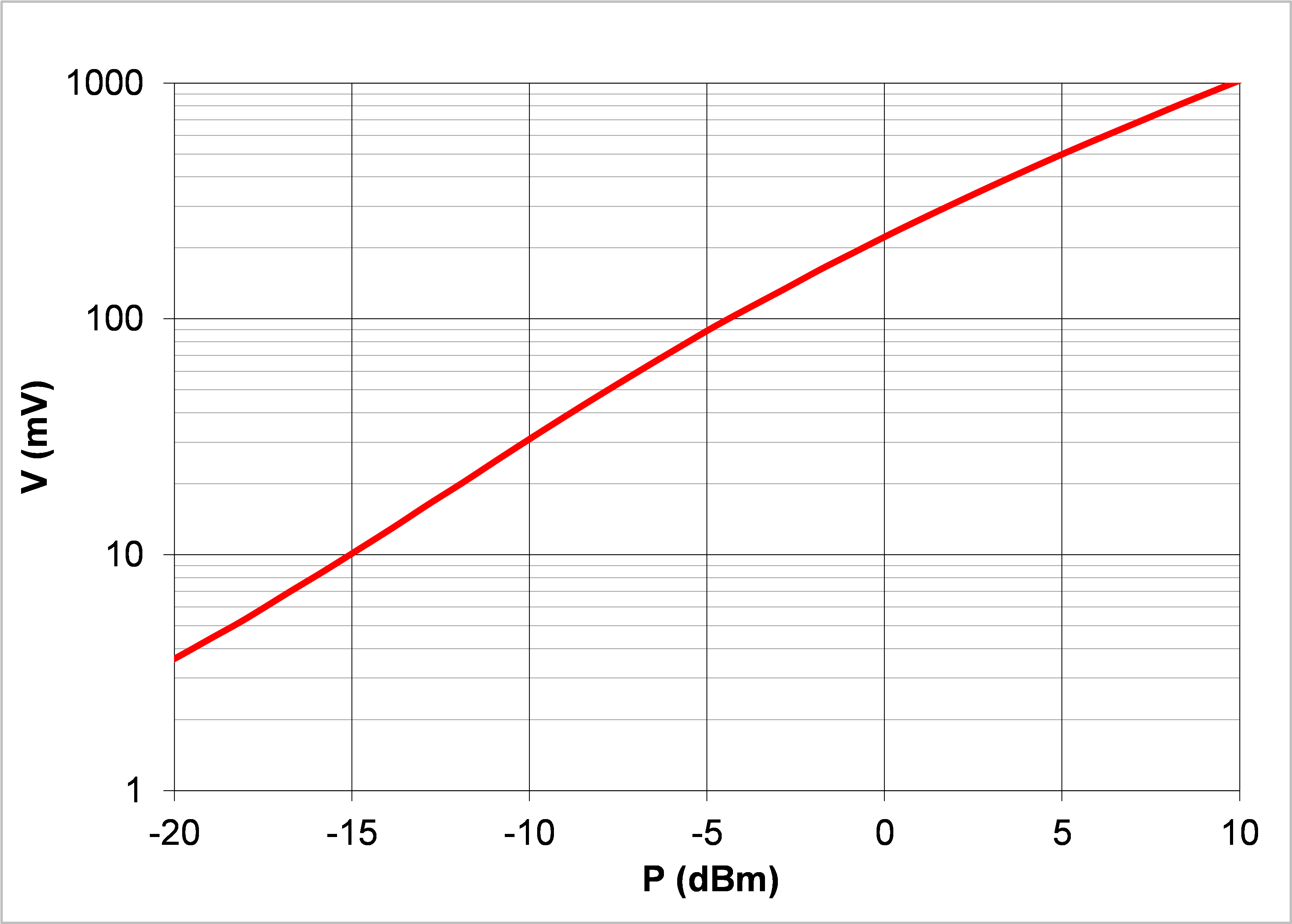

Typical transfer characteristic (f=5.8 GHz, Rload=33k, Ta=25C):
